July 26, 2024

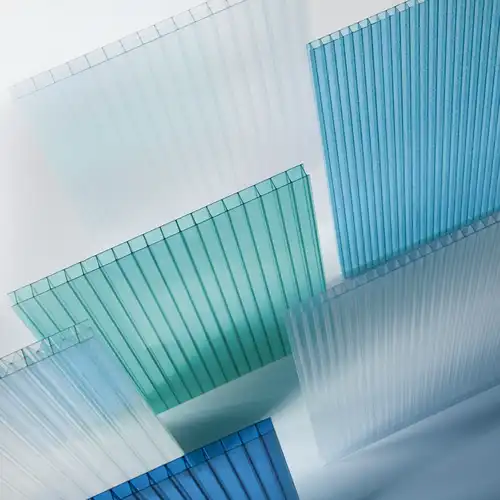

Multiwall polycarbonate sheets are versatile and durable materials widely used in various applications such as roofing, greenhouse glazing, and partitions. Cutting these sheets requires careful attention to detail and the right tools to ensure a clean and accurate cut. In this blog post, we will delve into the methods and techniques for cutting multiwall polycarbonate sheets effectively.
Understanding the unique properties of multiwall polycarbonate sheets is crucial before attempting to cut them. These sheets consist of multiple layers of polycarbonate, joined together by vertical ribs or channels. This structure provides exceptional strength and insulation, but it also requires specific cutting techniques to avoid damaging the material. By following the proper methods and using the appropriate tools, you can achieve precise and clean cuts that will enhance the overall aesthetics and performance of your project.
1.What Tools Are Needed to Cut Multiwall Polycarbonate Sheet?
To ensure clean and precise cuts when working with polycarbonate multiwall sheets, the following tools are essential:
- Circular Saw: A circular saw equipped with a fine-toothed blade specifically designed for cutting plastic is ideal for straight cuts on multiwall polycarbonate sheets. The blade should have a high tooth count (at least 60 teeth) to minimize chipping and ensure smooth edges.
- Jigsaw: For curved or intricate cuts, a jigsaw with a fine-toothed blade (10-20 teeth per inch) is a suitable option. Ensure the blade is sharp and designed for cutting plastic to achieve clean cuts.
- Table Saw: When cutting larger sheets and requiring straight, precise cuts, a table saw with a fine-toothed blade is recommended. The table saw provides stability and control, ensuring accurate cuts. Use a blade specifically designed for plastics to prevent chipping and melting.
- Utility Knife: For thinner Multiwall Polycarbonate Sheets (up to 6mm), a sharp utility knife with a new blade can be used to score the sheet. By carefully scoring along the desired cut line, the sheet can be snapped cleanly along the score.
- Measuring and Marking Tools: Accurate measuring and marking are crucial for precise cuts. A measuring tape, straightedge, and marker are essential for marking the cut lines on the polycarbonate sheet. Using these tools ensures that the cuts are made to the desired dimensions and in the correct location.
2.Methods for Cutting Multiwall Polycarbonate Sheet
2.1.Cutting with a Circular Saw
Step 1: Measure and mark the cutting line on the polycarbonate sheet using a measuring tape and marker.
Step 2: Place the polycarbonate sheet on a stable surface, such as sawhorses or a workbench.
Step 3: Set up the circular saw with a fine-toothed plastic cutting blade.
Step 4: Start the saw and carefully guide it along the marked cutting line, applying steady pressure. Let the saw do the cutting; do not force it.
Step 5: Support the sheet properly as you near the end of the cut to prevent it from breaking off prematurely.
2.2.Cutting with a Jigsaw
Step 1: Mark the cutting line on the polycarbonate sheet.
Step 2: Clamp the polycarbonate sheet securely to a workbench or sawhorses.
Step 3: Install a fine-toothed jigsaw blade suitable for plastic.
Step 4: Start the jigsaw and carefully follow the marked cutting line, moving at a moderate speed to avoid chipping.
Step 5: Support the offcut piece to prevent it from breaking away and causing damage.
2.3.Cutting with a Table Saw
Step 1: Measure and mark the cutting line on the polycarbonate sheet.
Step 2: Set the fence on the table saw to the desired width of the cut.
Step 3: Install a fine-toothed plastic cutting blade on the table saw.
Step 4: Position the polycarbonate sheet against the fence and carefully push it through the saw, maintaining steady pressure.
Step 5: Use a push stick to guide the sheet through the saw, especially for narrow cuts.
2.4.Scoring and Snapping with a Utility Knife
Step 1: Measure and mark the cutting line on the polycarbonate sheet.
Step 2: Lay the sheet on a flat, stable surface.
Step 3: Score the sheet along the marked line using a sharp utility knife, applying firm pressure.
Step 4: Bend the sheet back along the scored line and snap it to break it along the cut.
3.Tips for Cutting Multiwall Polycarbonate Sheets
3.1.Safety First: Always wear safety goggles and gloves when cutting polycarbonate sheets to protect against flying debris and sharp edges.
3.2.Minimize Friction and Heat: Use sharp blades and moderate cutting speeds to minimize friction and heat, which can cause melting or chipping.
3.3.Support the Sheet: Properly support the sheet during cutting to prevent it from vibrating or bending excessively, which can lead to cracking or misalignment.
Conclusion
In conclusion, cutting polycarbonate sheet multiwall requires the right tools and techniques to achieve clean, precise cuts.
Whether you choose to use a circular saw, jigsaw, table saw, or utility knife, it is essential to follow the correct procedures to avoid damaging the sheet and ensure your safety.
Choosing the appropriate tool and method based on your project's requirements will ensure successful cutting of multiwall polycarbonate sheets for various applications. For instance, a circular saw is ideal for straight cuts, while a jigsaw is suitable for curved or intricate cuts. Thinner sheets can be scored and snapped using a utility knife.
By carefully following the recommended cutting techniques and using the right tools, you can achieve professional-looking results when working with polycarbonate multiwall sheets. For more information about multiwall polycarbonate sheets or to discuss your project-specific needs, please do not hesitate to contact us at simon@chiancess.com.
